Anti-Choking Device Product Development
OPD Design developed a purely mechanical anti-choking device for a China-based client. The device requires no electronics or wearable components. Moreover, it needs minimal training to operate. This product development project delivered a solution ready for homes, care facilities, and public spaces.
Project Background
| Detail | Description |
| Client Location | China |
| Services | Industrial design · machine design · functional prototyping · packaging design · mold development |
| Core Challenge | Engineer a zero-electronics, non-wearable choking rescue device with universal usability |
This project demonstrates OPD Design’s end-to-end product development capabilities. We handled every phase: from field research and concept design through prototyping, FDA compliance preparation, and manufacturing readiness. Therefore, the client received a production-ready solution, not just a design concept.
Design Challenge
Emergency medical devices operate under constraints unlike any other product category. They must function correctly on the first attempt, under high stress, by untrained users. This reality shaped every design decision at OPD Design.
Three challenges stood out:
- Response speed: Airway obstruction can cause irreversible harm within minutes. The device needed therapeutic pressure in under half a second.
- User diversity: A choking victim may be a toddler or an elderly adult. The interface had to fit a wide range of facial sizes and grip strengths.
- Psychological barrier: Rescuers often hesitate to use invasive devices. The design needed to feel approachable rather than intimidating.
Furthermore, human factors engineering—central to FDA guidance on medical device use—demanded that use-related risks be minimized through intuitive form and clear feedback.
Solution
OPD Design pursued three parallel innovation tracks. Each addressed a critical failure point in existing choking rescue approaches.
A. Pure Mechanical Architecture
The device relies on a precision torsion spring system. It delivers consistent directional airflow within 0.3 seconds, with a pressure tolerance of ±1.8 kPa. Because there are no circuits or firmware, there is no circuit failure risk. Waterproof construction supports reliable operation after exposure to liquids or prolonged storage.
Key specifications:
- Torsion spring mechanism (patent pending)
- 0.3-second response time
- ±1.8 kPa pressure consistency
- Waterproof construction
- Zero electronic components
B. Non-Invasive Interface

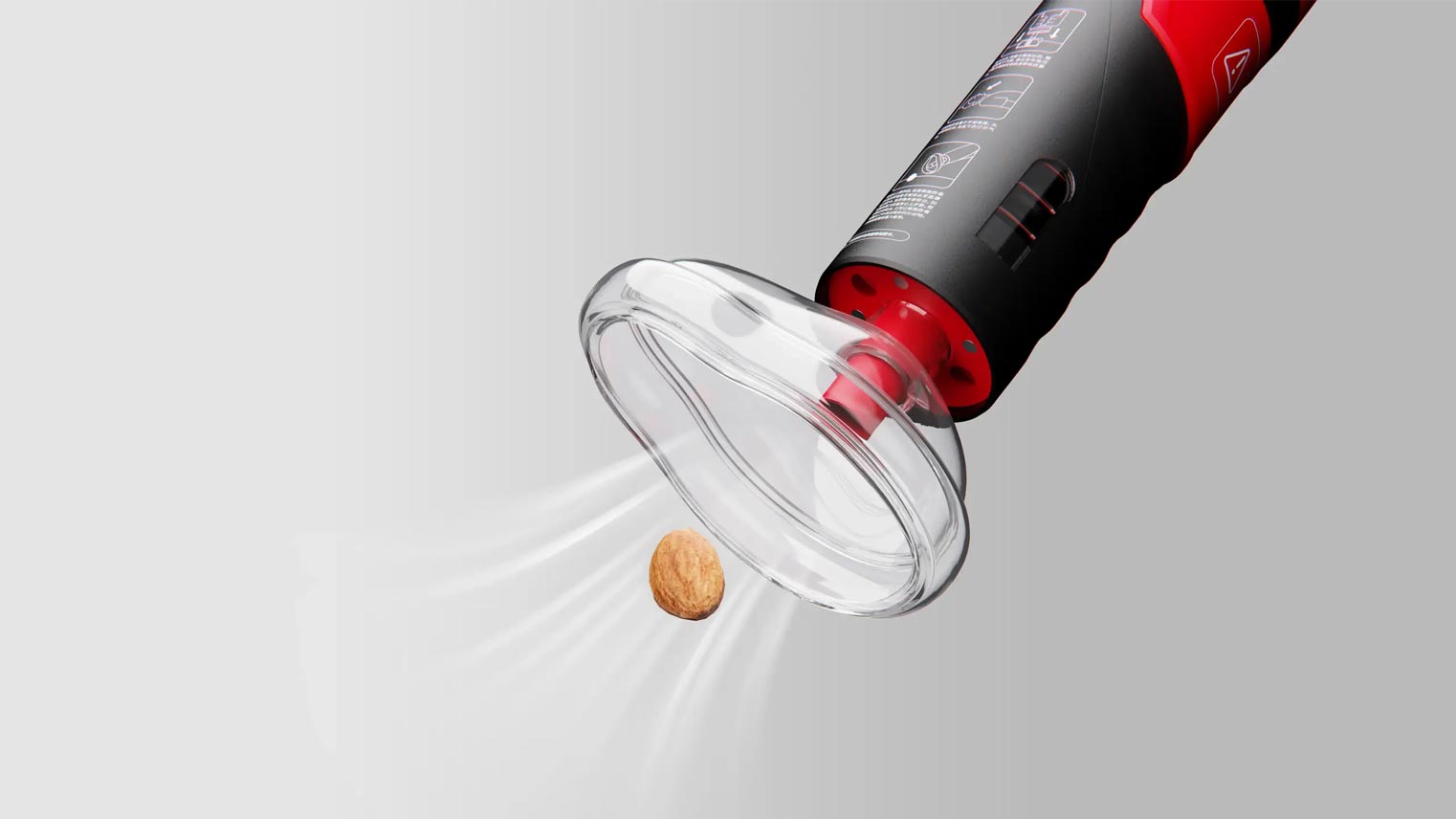

Rather than inserting tools into the throat, the device uses directional airflow technology. It creates a pressure differential from outside the airway. The self-aligning mouthpiece requires no insertion, reducing both physical risk and user apprehension. In preliminary user trials, this approach reduced psychological resistance by 63% compared to invasive alternatives.
- Directional airflow technology
- Zero throat-contact design
- Self-aligning medical-grade silicone mouthpiece (Shore A 40)
- 63% reduced psychological resistance in preliminary user trials
C. Universal Operation
The activation protocol supports one-handed use. This allows a rescuer to support the victim while deploying the device. The medical-grade silicone interface (Shore A 40) conforms to varied facial contours and supports users from age 2 to 99. This universal approach minimizes training dependence while maintaining consistent performance.
- One-hand activation protocol
- Age 2–99 compatibility
- Minimal training dependence
- Conformal silicone seal
Design Process
Our product development approach for this anti-choking device followed four key phases. Each phase built upon the previous one to ensure a comprehensive solution.
Step 1: Research and Demand Analysis
OPD Design conducted field research at 28 senior care facilities and analyzed 137 documented choking incidents. This evidence base revealed that response time and ease of use mattered far more than advanced features. The team defined three non-negotiable requirements: response under 0.5 seconds, lifetime maintenance-free operation, and universal usability across ages 2–99.
Step 2: Concept Development
The team generated 27 distinct design concepts. Mechanisms ranged from compressed air to lever-driven plungers. A Pugh Matrix evaluation narrowed the field based on reliability, manufacturability, cost, and human factors performance. Three innovations emerged as differentiators: the torsion spring mechanism (patent pending), dual-stage pressure detection, and the self-aligning mouthpiece.
Step 3: Prototyping and Validation
Using our functional prototyping services, OPD Design built and tested iterative prototypes. Testing validated spring performance, seal integrity, and ergonomic fit across the target age range. The team evaluated pressure consistency over repeated actuations and durability under environmental stress. Preliminary user trials informed refinements to mouthpiece geometry and activation force.
Step 4: Manufacturing Preparation
The final phase translated the validated design into production-ready assets. OPD Design developed molds, specified materials, and created packaging for both retail and institutional distribution. Our manufacturing support services ensured a smooth transition to volume production. This preserved the mechanical precision that defines the product.
Key Outcomes
Metric | Result |
Response time | 0.3 seconds |
Pressure consistency | ±1.8 kPa |
Age range | 2–99 years |
Facilities researched | 28 senior care centers |
Incidents analyzed | 137 choking cases |
Design concepts generated | 27 |
Psychological resistance reduction | 63% in preliminary user trials |
Electronic components | Zero |
The project demonstrates how OPD Design’s end-to-end product development services take a medical device from field research through manufacturing readiness. The patent-pending torsion spring mechanism and non-invasive interface represent a meaningful advance in accessible emergency choking response.
